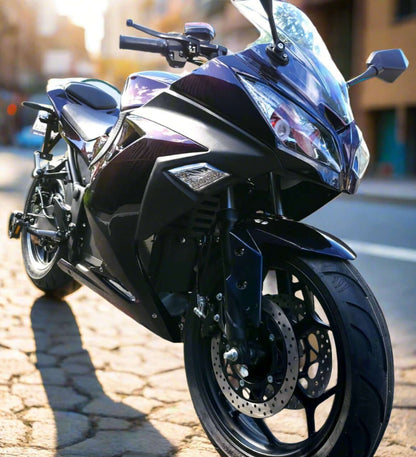

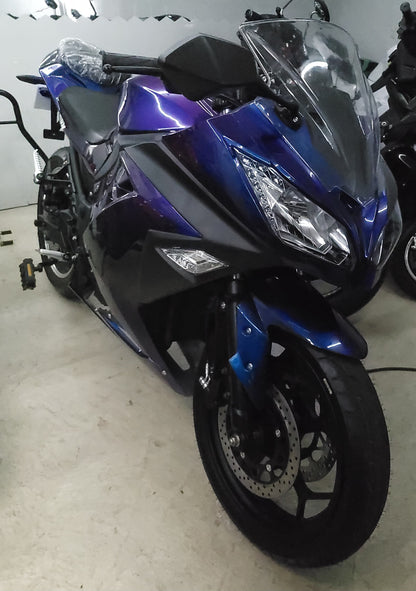

RAWATRON HORIZON 72v PURPLE

Battery: 72V 32Ah Silicon Lead Acid With Charger
Battery Cycle Life: 300
Motor Power: 500W (3000W Peak Hub Drive)
Speed: (±)<32km/h Est. (Governed)
LSM Speed: 80-90km/h (Class 5 or Novice Driver’s License Required)
Speed Mode: 3 Speeds With Reverse
Range: (±)<80km Est.
Charge Time: 7-8 hrs Est.

Dash Display: Digital LED/Speedometer/Odometer/Battery Level
Lights: Front Headlights with Running Lights/Low Beam/ High Beam, Rear Brake Light Hazards and Turn Signals.
Bluetooth: Built In Speaker
Keys: 1 Set
Alarm: 1 Set Fob
Killswitch: Switches Throttle Off
Horn: Yes
Lock: Left Turn Wheel Lock
Pedals: Yes
Footrest for Passenger: Yes

Brake Type: Hydraulic Disc (F/R)
Suspension (F/R): (Multilink) Hydraulic Shock/Spring Coilover
Rim OD: 17″
Tire Size: F110/70/17 – R140/70/17

Frame Type: High Tensile Steel
Max. Loading Capacity: 331lb/150kg
Gross Weight (Without battery): 145lb/65.77kg
Battery Weight: 120lb/54.4kg
Climbing Capacity: 25° (1 person, 75kg)
Product Dimensions:75x22x43in/1905×558.8×1092.2mm

Final Sale Warranty

Final Sale. No Refunds. Manufacture Warranty is for 6 months parts replacement only. (Batteries & chargers are 3 mo.) Warranty covers component failure only. It does not cover incorrect assembly. All warranty claims will be examined for failure analysis in case of customer misuse, incorrect assembly or damage. Normal scratches or wear & tear & wearable products such as tires & bulbs are excluded. Warranty does not include, shipping, delivery or installation of parts which could cost extra. The persons stated on the purchase invoice is fully aware and understands that only they are responsible for any and all damage to any property involving the vehicle on this invoice and/or injury to themselves or other people/property and/or penalties from contravening any laws of Canada or any nation outside of Canada. Surrey Ebikes Ltd. is not liable or responsible for any actions or consequences of the end users of its products. Usage of products on this invoice are completely at your own risk. All conditions of sale are understood & product(s) received are in good condition.

Assembly Disclaimer

Products that have been shipped require tools for final assembly. It requires mechanical knowledge to assemble properly.

If you do not have mechanical assistance or are not mechanically inclined you my want to see our local authorized dealership. If there is no local authorized dealership, you may want to consider if you are capable of preforming final assembly of this product. Some basic tools are required for final assembly.

Shipping Disclaimer

This product is packaged by the manufacture. Due to the large and bulky nature of this product, minor blemishes could occur during transport. Surrey Ebikes is not responsible for any of these minor blemishes. If there is any major cracks or broken pieces, parts are available.

>Travel range is based on riding on level ground, no stops, no winds, warm temperatures for a 175lb rider with no extra cargo.

*Actual product may slightly differ from picture. Please contact us for a current picture if required.

**Prices are MSRP. Dealer prices may vary to include assembly and/or shipping.
